DJI Matrice 300 RTK Drone

DJI Matrice 300 RTK Drone

Complete Integration

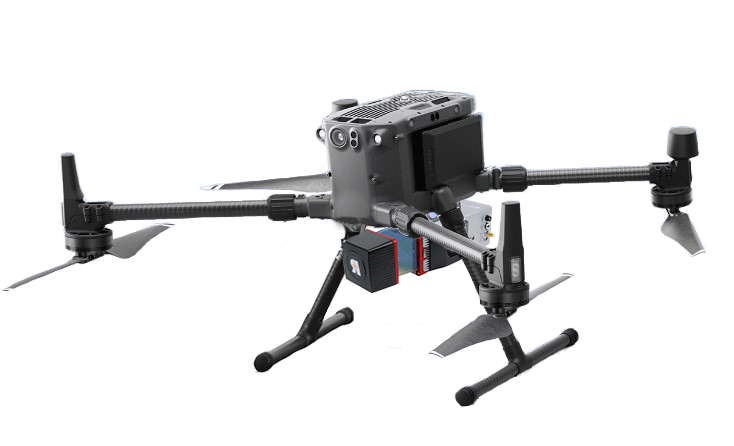

The M300 RTK is simple, easy to set up, and ready to fly in minutes. Its airframe has been optimized for easy transport with a quick-release landing gear design and folding frame arms. Under the new upper cover, the positions of GNSS modules and sensors have been revamped, and a new dampening system for the IMU units increases reliability during flight. The M300 RTK has an extended flight time of up to 55 minutes* and a 15km** long-distance transmission range. The M300 RTK also has a durable, customizable case that absorbs impact from shakes or falls, providing all-around protection when carried or transported.

*Actual flight time may vary because of the environment and payload configurations.

** Unobstructed, free of interference, when FCC compliant. The maximum flight range specification is a proxy for radio link strength. Always fly your drone within a visual line of sight unless otherwise permitted.

Redundancy Systems for Safer Flights

The Matrice 300 RTK platform is designed with extensive system and sensor redundancies to maximize flight safety and reliability. These redundancies and safety mechanisms include dual flight control system sensors, dual control signal links, dual intelligent batteries, dual transmission links, obstacle sensor system redundancies, and three-propeller emergency landing.

Enhanced in-flight safety and Stability

To enhance in-flight safety and aircraft stability, dual-vision and ToF sensors appear on all six sides of the aircraft, offering a maximum detection range of up to 40 m, with options to customize the aircraft's sensing behavior via the DJI Pilot App. Even in complex operating environments, this 6 Directional Sensing and Positioning system helps keep the aircraft and the mission safe.

Aerial Imaging Solution

Dustproof propulsion systems simplify maintenance, and active cooling motors ensure that operation is reliable for extended periods. The M300 RTK is natively compatible with current Zenmuse cameras and gimbals.

Professional HD Transmission

DJI Smart Controller Enterprise has been designed to meet all the requirements of professional broadcasting, offering high frame rates and HD live streaming. It has an Ultra-bright 5.5-inch 1080p display that maintains visibility even in direct sunlight.

The all-new OcuSync Enterprise enables transmission up to 15 km away and supports dual-channel 1080p video. Real-time auto-switching between 2.4 and 5.8 GHz enables more reliable flight near high-interference environments. At the same time, AES-256 encryption offers secure data transmission.

Dynamic, self-adaptive wireless data links enable long-range transmission with ultra-low latency, supporting a broadcast standard output of 720p/59.94fps and 1080i/50fps, enabling even more creative opportunities for aerial imaging.
